Description

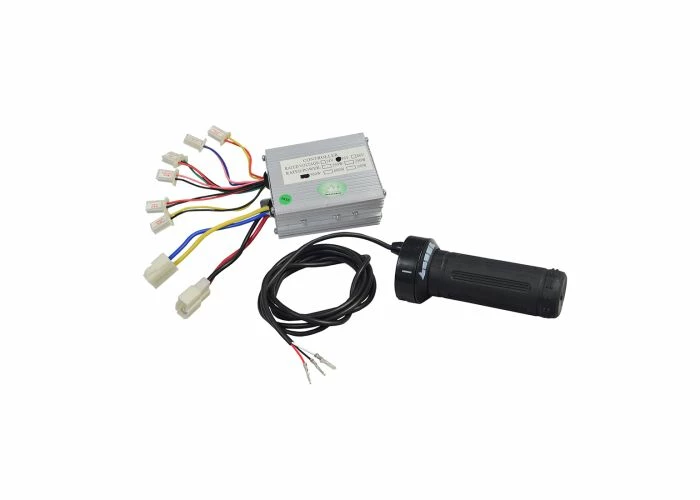

Several versions of Minimoto XRF500 controllers are not compatible with the standard 3-wire hand throttle. To replace the hand throttle on the XRF500, replacement parts of both the 36 volt controller and hand throttle are required.

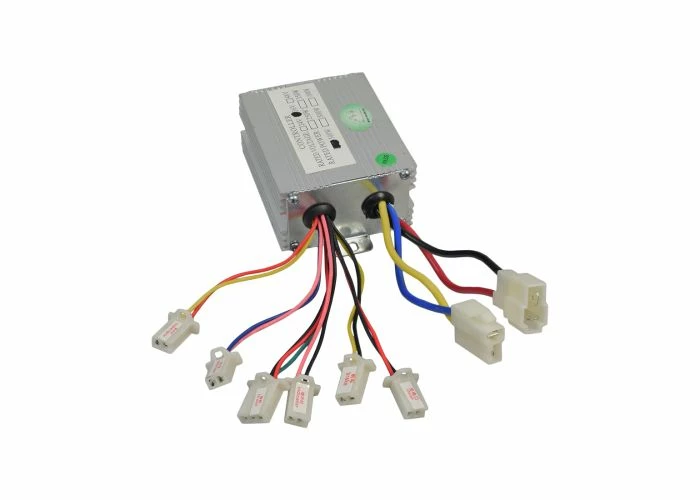

Controller connections as follows:
Black & Red Wires
Battery wiring. Cut and splice to your existing controller battery connector or hard wire to your bikeβs wiring. Black to Black, Red to Red.
Blue & White Wires
Motor wiring. Cut and splice to your existing controller motor connector or hard wire to your bikeβs wiring. Blue to Blue, White to Red.
Charge Connector
Battery charger connector, same as OEM connector. Connect to your bikeβs βchargeβ connector.
Lock Connector
Key switch connector, same as OEM connector. Connect to your bikeβs βlockβ connector.
Derailleur Connector
Hand throttle connector, 3-wire. Plug your 3-wire hand throttle wires into the three prongs on this connector. Black to Black, Red to Red, Blue to the third wire on your hand throttle.
Brake Connector
Brake connector, same as OEM connector. Connect your bikeβs brake wires to this connector. Black to Black, Yellow to Red.
PLEASE NOTE:
Due to the delicate nature of voltage controllers, and the care that must be taken when making wiring connections, it is Monster Scooter Parts company policy that all voltage and speed controller sales are final. Please ensure you are comfortable making delicate wiring connections and cutting and splicing wires prior to ordering. Our entire return policy can be viewed at the link below:
