New 🔔 Mon Ster 97cc 2.8 Hp (Honda GX100 Clone) Pit Bike Engine For Baja Blitz, Dirt Bug, Doodle Bug, & Racer Mini Bike 🔔

This Hensim manufactured 97cc 2.8 Hp pit bike engine is for the Baja Blitz, Dirt Bug, Doodle Bug, and Racer Mini Bike. It is also suitable for many custom or garage-built projects as well as small go karts.

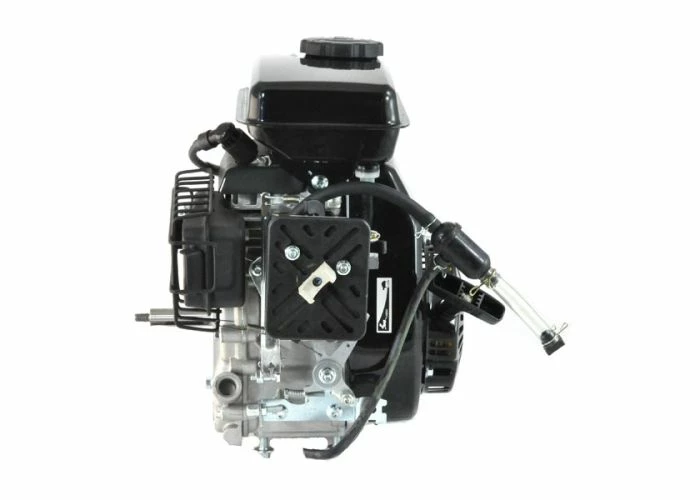

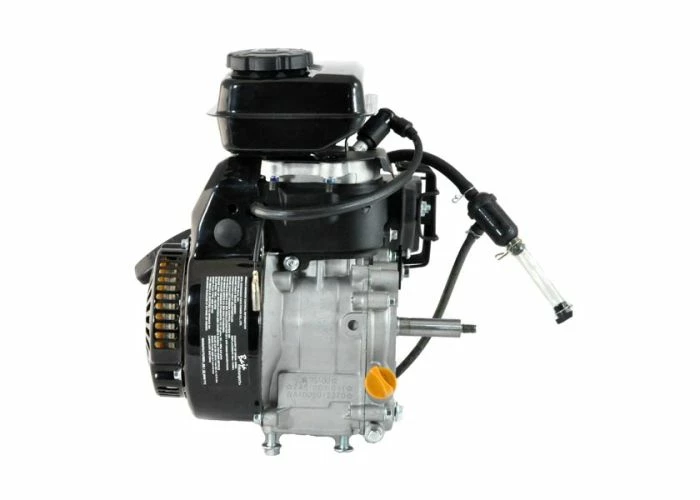

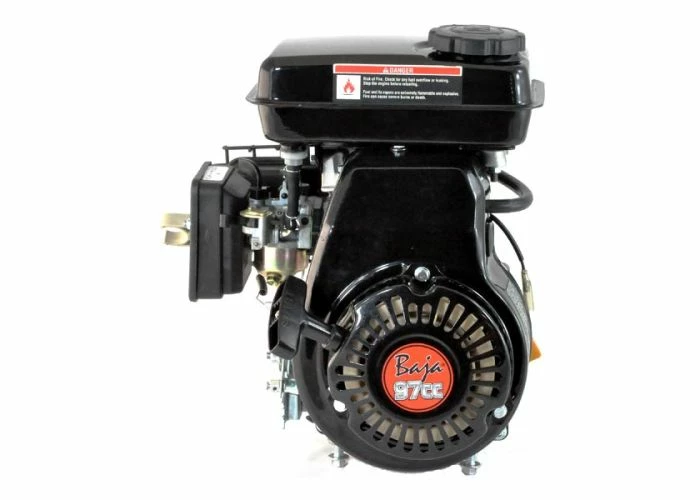

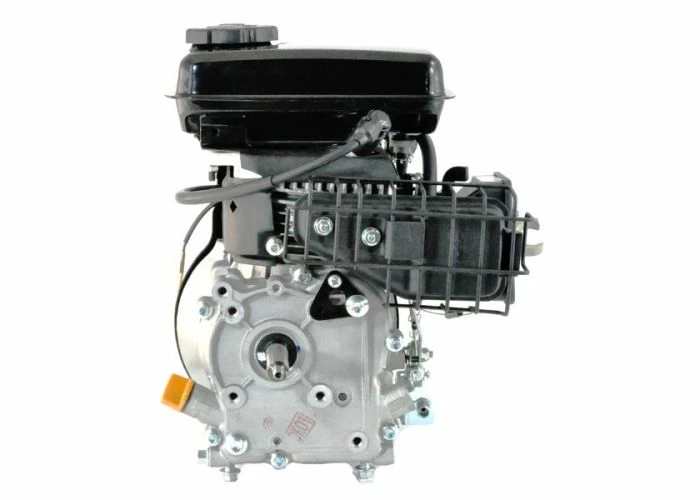

This is a Chinese made “clone” of a Honda GX100 engine. A great little mini bike engine at an affordable price, this engine comes complete with everything pictured, including the carburetor, fuel tank, air filter, and pull start. At this low price it is a great option for fun projects like mini bike, pit bikes, go karts, gas powered bikes, etc.

This engine is not compatible with the similarly styled Motovox MBX10 & MBX11 mini bikes. The mounting base and hole pattern is different between these two lines of mini bikes. This 97cc horizontal shaft engine has a mounting hole pattern of 104 mm x 61 mm.

⚠ WARNING California Residents: Proposition 65 Warning

Model: DB30S

Baja Part Number: DB30S-101

Engine Type: Single cylinder air-cooled 4-stroke

Displacement: 97.7cc

Rated Power: 1.84KW/3600rpm (2.8 hp)

Max Torque: 3.8 Nm/2500 rpm

Ignition System: Non-contact Transistorized Ignition (TCI)

Start Mode: Recoil pull start

Fuel Tank Capacity: 1.4 liters (0.36 gallons)

Fuel Type: 87 octane or higher

Engine Oil Capacity: 0.45 liters (0.40 quarts)

Engine Oil Type: SAE 15W50 API: SF

Bore: 52 mm

Stroke: 46 mm

Idle Speed: 1500 rpm +/- 150 rpm

Spark Plug: Autolite-258, AC-CS49, Champion-CJ14, NGK-BPMR6A, Denso-W14M-US

Choke: Manual

Fuel Shutoff: Yes

PTO Shaft Rotation: Counter clockwise

Output Shaft Diameter: 5/8 inches

Output Shaft Length: 2-1/4 inches

Dimensions (L X W X H (inches)): 10-1/2 x 10-1/2 x 13-1/4

Weight: 21 lbs

Shipping Weight: 25 lbs
