Outlet 🧨 Mon Ster 24 Volt 350 Watt Universal Speed & Voltage Controller 🛒

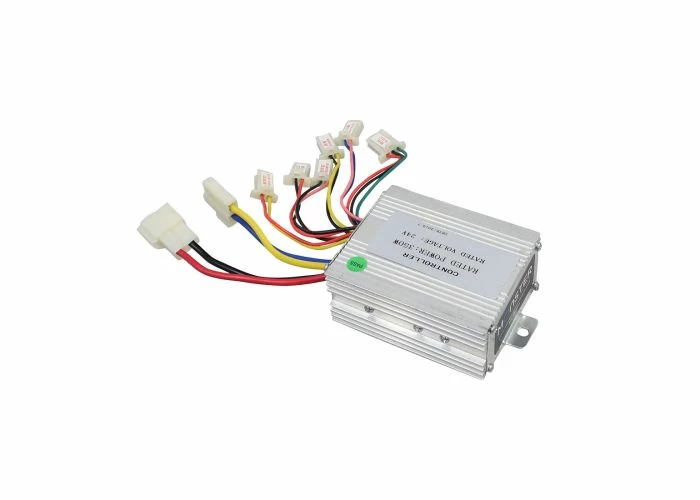

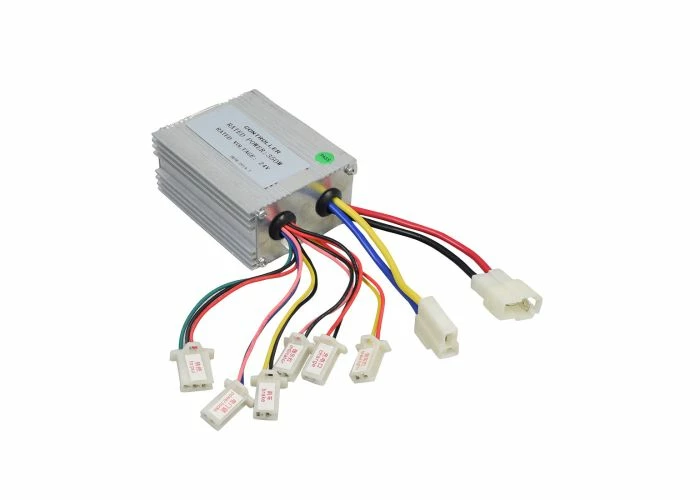

24 Volt 350 Watt voltage/speed controller for electric scooters, bikes, go karts, and mopeds. Eight connectors: motor, battery, charge, derailleur, lock, brake, and brake signal.

This controller comes with the most common wiring connections found on electric scooters. However, depending on your make and model, you may need to cut and splice a few but not all of the wires.

Compatible on most 24 Volt products equipped with 180-350 Watt motors.

Controller connections as follows:

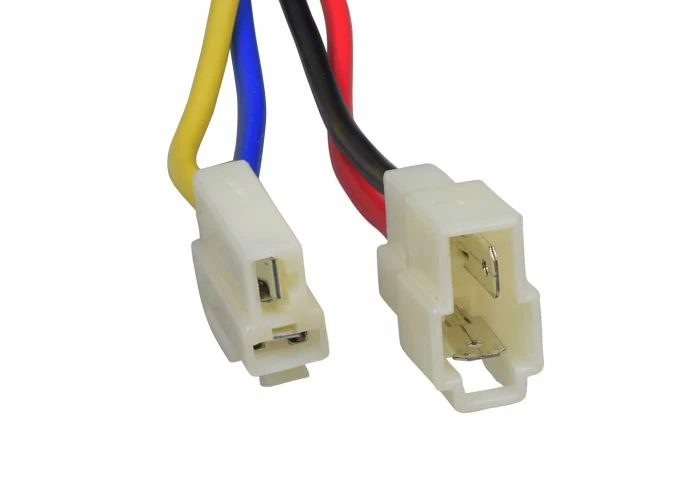

Battery Connector (Black & Red Wires, Thick)

Battery wiring. Black to Black, Red to Red.

Motor Connector (Blue & Yellow Wires, Thick)

Motor wiring. Blue (controller) to Blue (existing wiring), Yellow (controller) to White/Yellow/Brown (existing wiring).

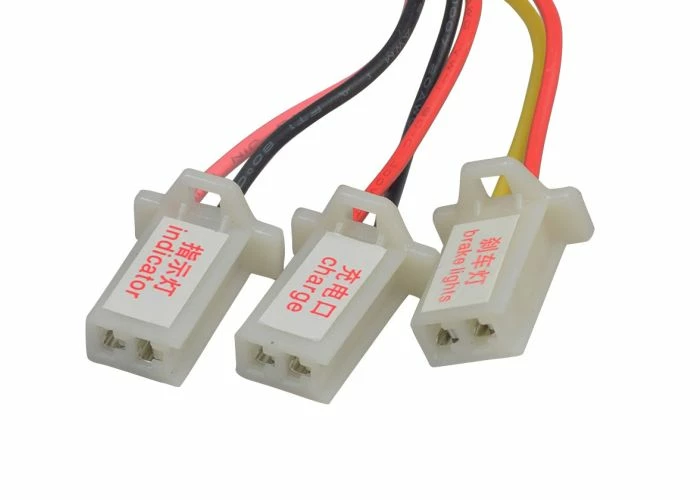

Charge Connector (Black and Red Wires, Thin)

Battery charger connector. Black to Black, Red to Red.

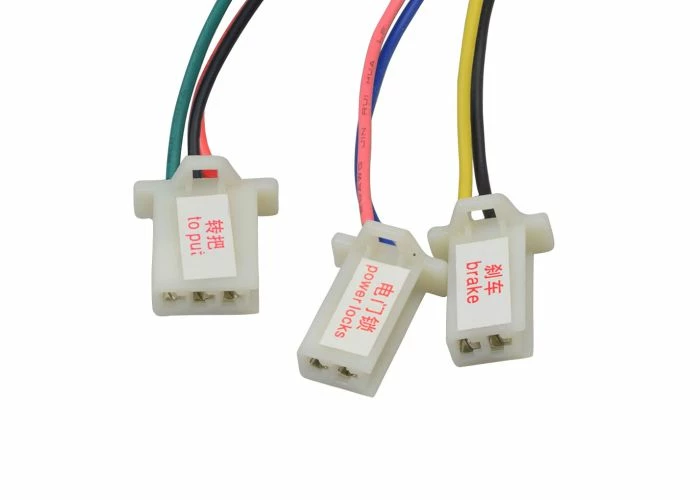

Derailleur Connector (Red, Black, & Green Wires, Thin)

Hand throttle connector, 3-wire. Plug your 3-wire hand throttle wires into the three prongs on this connector. Your product’s throttle wiring may be included in an existing 6 pin connector on your wiring harness. Black to Black, Red to Red, Green to the third wire on your hand throttle (Blue or Green or other).

Lock Connector (Blue & Pink Wires, Thin)
Key switch connector. Connect to your product’s “lock” connector, or hard wire to your key switch wiring. Wire color connection not critical, but Blue to Blue, Pink to Pink if they match.

Brake Connector (Black & Yellow Wires, Thin)

Brake connector. Your product’s brake wires may be included in an existing 6 pin connector on your wiring harness. Black to Black/Red and Yellow to Yellow.

Brake Signal Connector (Yellow & Red Wires, Thin)

Brake light connector. Yelloe to Yellow, Red to Red.

Turn Signal Indicator (Black & Pink Wires, Thin)

Black to Black, Pink to Pink.
Note: All scooter controllers require a switch, (joined to the “Lock” connector on the controller wires), in order to complete the electrical circuit.

⚠ WARNING California Residents: Proposition 65 Warning

Voltage: 24 Volts

Current: 21 Amps maximum

Power: 350W
