Outlet 🧨 Mon Ster 24 Volt 1000 Watt / 1000W Permanent Magnet Universal Speed & Voltage Controller 😉

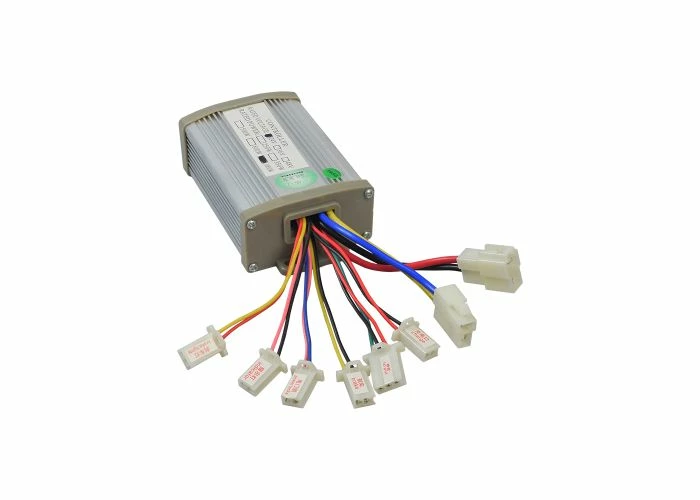

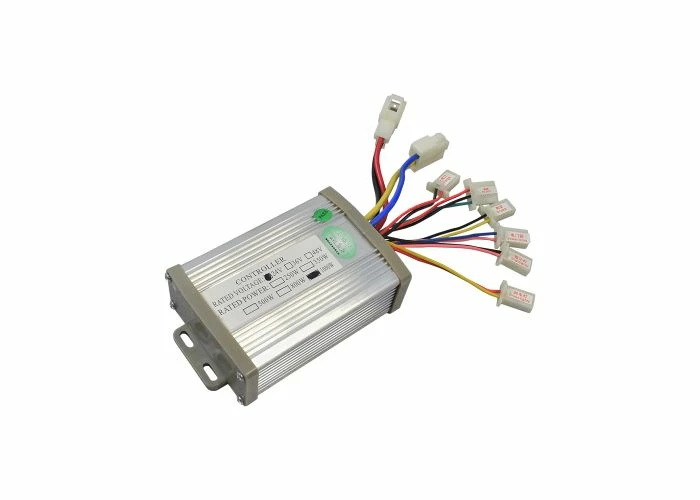

24 volt 1000 watt / 1000W permanent magnet universal speed & voltage controller for electric scooters, bikes, go karts, and mopeds.

Controller connections as follows:

Battery Connector (Black & Red Wires, Thick)

Battery wiring. Black to Black, Red to Red.

Motor Connector (Blue & Yellow Wires, Thick)

Motor wiring. Blue (controller) to Blue (existing wiring), Yellow (controller) to White/Yellow/Brown (existing wiring).

Charge/Indicator Connector (Black and Red Wires, Thin)

Battery charger connector. Black to Black, Red to Red.

Derailleur Connector (Red, Black, & Blue Wires, Thin)

Hand throttle connector, 3-wire. Plug your 3-wire hand throttle wires into the three prongs on this connector. Your product’s throttle wiring may be included in an existing 6 pin connector on your wiring harness. Black to Black, Red to Red, Blue to the third wire on your hand throttle (Blue or Green or other).

Lock Connector (Blue & Red Wires, Thin)

Key switch connector. Connect to your product’s “lock” connector, or hard wire to your key switch wiring. Wire color connection not critical, but Blue to Blue, Red to Red if they match.

Brake Connector (Black & Yellow Wires, Thin)

Brake connector. Your product’s brake wires may be included in an existing 6 pin connector on your wiring harness. Black to Black/Red and Yellow to Yellow.

Brake Signal Connector (Red & Yellow Wires, Thin)

Brake light connector. Red to Red, Yellow to Yellow.

This controller uses a 3 wire throttle. Although compatible with most 24 Volt products equipped with 600-1000 Watt motors, it is not compatible with 4 wire or Currie 5-pin or 6-pin half grip throttles.

Note: All scooter controllers require a switch, (joined to the “Lock” connector on the controller wires), in order to complete the electrical circuit.
